Product Description

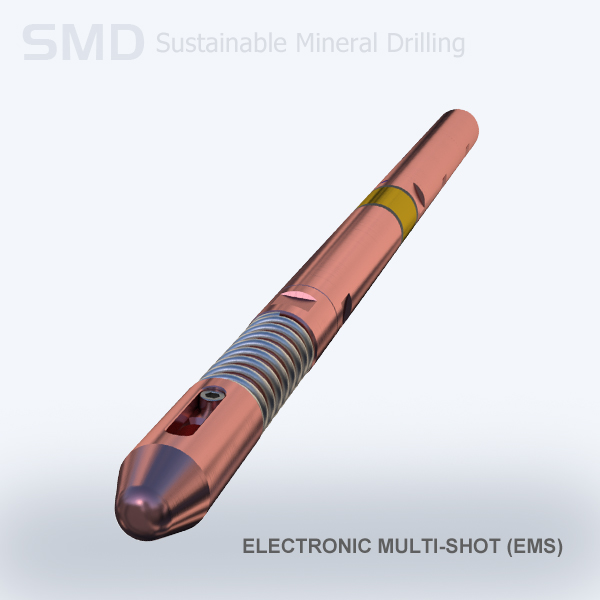

Widely used in Mineral Exploration , Civil Construction and Water Well Industries the SMD EMS provides Inclination , Azimuth , Tool Face Angle plus other essential QAQC data parameters.

1. Main technical indicators and specifications

Accuracy

Azimuth: ± 0.3° Inclination: ± 0.3° Gravity Toolface: ± 0.5° Magnetic Dip Angle: ± 0.5° Magnetic field ±0.0005Ga （± 50 nT）

2. Advantage

Fast Data Acquisition

Reliable high speed Bluetooth communication between the digital survey instrument and smart controller

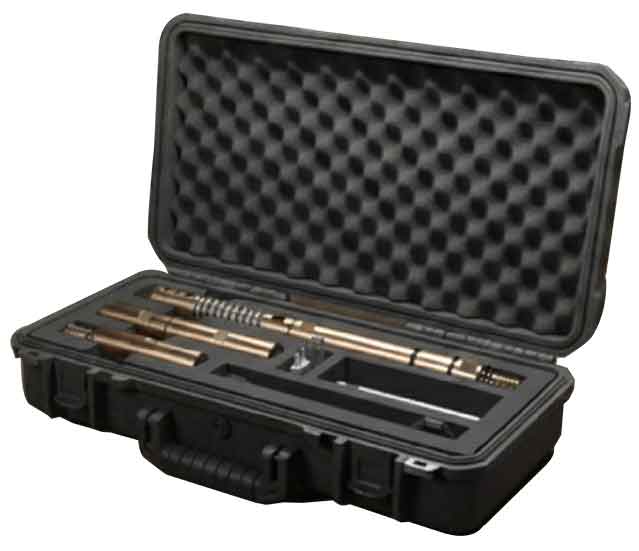

3. EMS package

Packaged in heavy-duty cases the SMD-EMS instrument , battery and smart controller stay protected at all times and are easily accessible

Electronic-Muti-Shot(EMS)-package

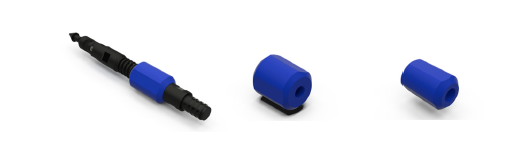

4. EMS running gear

Manufactured to meet industry thread configurations our Running Gear aligns with all standard mineral exploration sizes

Electronic-Muti-Shot running collars

5. Easy to use with added quality control

The User Interface of the App has been designed to align with drilling workflows to ensure ease of use without errors. Data output in standard csv format for customised QAQC , upload , export or view

Electronic-Muti-Shot access your data via cloud or USB

Designed for all-angle drilling in mineral exploration, it ensures precise deviation control with zero magnetic interference.
