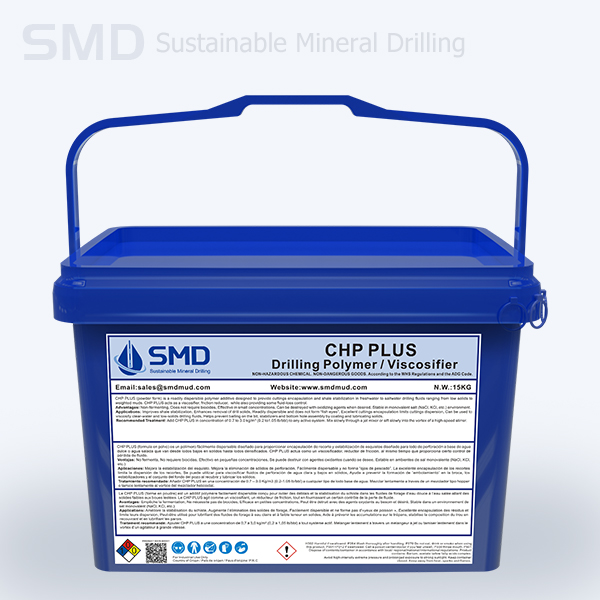

Drilling Viscosifier Polymer CHP PLUS

in stock

SMD Drilling Viscosifier Polymer CHP PLUS forms a protective polymer film on the drill pipe and bit as well as on the walls of the borehole which helps to provide lubrication when drilling in troublesome formations. It is ideally suited for use in horizontal directional drilling, water well, mining, and tunneling applications.

INQUIRY

Product Description

Drilling Viscosifier Polymer CHP PLUS (powder form) is a readily dispersible polymer additive designed to provide shale stabilization in freshwater to saltwater drilling fluids ranging from low solids muds. CHP PLUS acts as a viscosifier, and friction reducer, while also providing some fluid-loss control. Drilling Powder Polymer CHP PLUS forms a protective polymer film on the drill pipe and bit as well as on the walls of the borehole which helps to provide lubrication when drilling in troublesome formations. It is ideally suited for use in horizontal directional drilling, water well, mining, and tunneling applications.

The function of SMD Drilling polymer CHP PLUS

Super high viscosity
Easily mix, improve lubricity
Prevent the swelling and dispersion of shale and clay
Increase the core recovery rate
Enhance removal of drill solids
Can be used to viscosity clear-water and low-solid drilling fluids
Dosage:02 to 1.0 kg/m³
Package:15kg/drum

Application

SMD Drilling polymer CHP PLUS provides cuttings encapsulation and improved wellbore stability in a variety of drilling fluids. It can be used as a single product, low solids mud system, or it can be combined with SMD Bentonite CX GEL or SMD Viscosifiers CX TROL to form a more robust mud system.

It is ideally suited for use in horizontal directional drilling, water well, mining, and tunneling applications.

Advantages of SMD Drilling polymer CHP PLUS

Readily dispersible and does not form “fish eyes”
Excellent cuttings encapsulation limits cuttings dispersion
Improves shale stabilization
Help prevent balling on the bit, stabilizers, and bottom hole assembly by coating and lubricating solids
Enhances removal of drill solids
Can be used to viscosity clear-water and low-solids drilling fluids

Technical Data:

Appearance: White Powder

Solubility: Soluble in water

PH: 6.0-8.0

Recommended Treatment:

Add SMD Powder Drilling Polymer CHP PLUS in concentration of 0.7 to 3.0 kg/m³ (0.2 to1.05 lb/bbl) to any active system. Mix slowly through a jet mixer or sift slowly into the vortex of a high-speed stirrer.

Experimental description:
Powder drilling fluids chemicals CHP PLUS can reinforce and maintain borehourse prevent clay swelling, and dispersion increase core recovery rate enchace removal of drill solids.

CategorySMDAMCMUD LOGICMATEXCETCOBAROIDMI SWACOMUDEX
BentoniteCX BENAus-BenGEL 100PREMIUM GELAQUA GELMI GEL
CX GELAUS GEL
AMC BENTONITE HV
GEL AUS 4SUPER GEL-XQUIK GEL
Bore-Gel
Quik-bore
GEL SUPERME
SUPER GELAUS GEL XTRAGEL EXTRAHYDRAUL EZQUIK GEL GOLDMAX GEL
Maxbore HDD
GEL X 80
GEL X ULTRA
Drilling PolymersSUPER POLYLIQUI POL/liquid poly
EZEE MIX SDFC
LIQUI MUDDD 955 LiquidINSTA-VIS PLUSEZ MUDPOLY PLUSPOLY VIS LIQUID
POLY PLUSCAP 21
LP 2000/FS 2000
2000 PLUSULTRAVISEZ MUD PLUSPOLY PLUS 2000POLY VIS 2000
CHP/CHP PLUSCR 650C.R.PDD 2000INSTA-VIS DRYEZMUD GOLDPOLY PLUS RDCLAY SLAYER
POLY VIS HV
Sand CureSand FixSAND DRILLPOLY VIS LV
Clay FixClay Doctor
Core FixCore WellCoresealCLAY FIX
CX BIO VISBIO VIS
AMC GUAR GUM
BIO-GUM
POLYXCDXAN BOREXAN-VISSUSPENT ITNO SAG/BARAZANDUOVISXAN VIS
VISEZEE PAC RPAC R ULTRAPLATINUM PACENVIRO VIS
VIS PAC R
VIS TROL
CX TROLAUS TROL
EZEE TROL
TROLREL-PACQUICK-TROLVIS TROL RD
FILEZEE PAC LPAC L ULTRAREL-PAC XTRA-LOWQUICK-TROL LVPLATINUM PAC ULVIS PAC L
SMD 206AMC 206
Shale InhibitorsKLASTABKLATROLSHEAR TROLKLAGARD
PSHSHALEHIB ULTRASWELL HIBULTRAHIB
KLACAPMAXI CAPULTRACAP
SASAUS-TEX
RESIDRILL
INVADE STOPASPHASOL/ SURPREME
Foaming AgentsFOAM PLUSSUPER FOAM
AEROFOAM
AMC HV FOAM
AMC ROTAFOAM CONC
FOAM ULTRAMatex DRILL FOAMS
FOAMER ES
1560 XS
VERSAFOAM PLUSQUICK FOAM
BARAFOAM
PLATINUM FOAM
SUPER FOAM
FOAM X PLUS
LCMPlugAUS PLUGL/C STOPMATEX DD XPANDMACRO-FILMACRO-FILPOLYSWELLX PLUG
CX PELLETSBentonite Pellets
AMC BENTONITE PLUG
Coated TABLETSBentonite PelletsBentonite Pellets
FTSTICK UPFUSE-IT
SEALMAGMA FIBREMAGMA FIBREN-SEALSEAL X
LubricantsDRILL LUBEEP BIT LUBE
AMC EZYCORE
PRESSURE LUBETORQUELESSDRILL-XBARO LUBEMI LUBECORE X
DD 5000
X TORQUE
SUPER LUBEUNIVERSIAL
AMC SUPERLUBE
MAXI LUBEEP LUBE
CX CUTAMC CUT
AMC EZEE CUT
TORQUE CUTTORQUE GUARD
AMC WONDERCUT
TORQUE DOWN
PENE OILPENETROL-XTRAPENETRATION OILPENETREX
Grease& OilsThread greaseThread grease DRTG
AMC THREAD GREASE
THREAD GREASEES THREAD COMPOUND
COOPER THREAD GREASEAMC COPPER COMPOUND
TG-50ZN-50ZN-50
Rod greaseRod Grease Xtra Tacky
AMC GORILLA GRIP
DD GREASE - ULTRA TACKYBIO TACK
XT ROD GREASE
TUBE-LUBETUBE LUBE
AMC SUN SOAP
SLICK&SLIDE
CX LRGAMC LIQUID ROD GREASELRG
ThinerCX WELLCLEANWELLCLEANMUD FREE
THNLiqui - SperseLIQUID SPERSEDD 650 L
CLAY BREAK
SUPER THINAQUA-CLEAR PFDRINGFREECLAY BREAKER
DetergentCX DETAMC-DET
AUS-DET XTRA
AMC BORDET
DRILL DET ULTRADUST-LESSDRILL-TERGECON DETPLATINUM D-DBORE CLEANSER
X DET 202
Specialty ProductsWF-1WATER CONDITIONERWATER SOFTENER
POTASSIUM CHLORIDE (KCl)POTASSIUM CHLORIDE (KCl)
CALCIUM CHLORIDECALCIUM CHLORIDE
SODA ASHSODA ASHSODA ASH
Hammer OilHammer Oil 320Hammer Oil 320Hammer Oil 320RDO 302 ESBIO HAMMER OIL
Hammer Oil 320 MHammer Oil 320 MHammer Oil 320 M
Cementious ProductsGYPSUMGYPSETCOLLAR SET
PLUG AAUS GRIP A
AMC ECO GRIP A
RIGID FOAM Part A
PLUG BAUS GRIP B
AMC ECO GRIP B
RIGID FOAM Part B
