Product Description
This digital rheometer operates on eleven 18650 lithium batteries. During viscosity measurement, as the outer cylinder rotates at a preset speed, the fluid generates viscous resistance, allowing its viscosity to be determined.

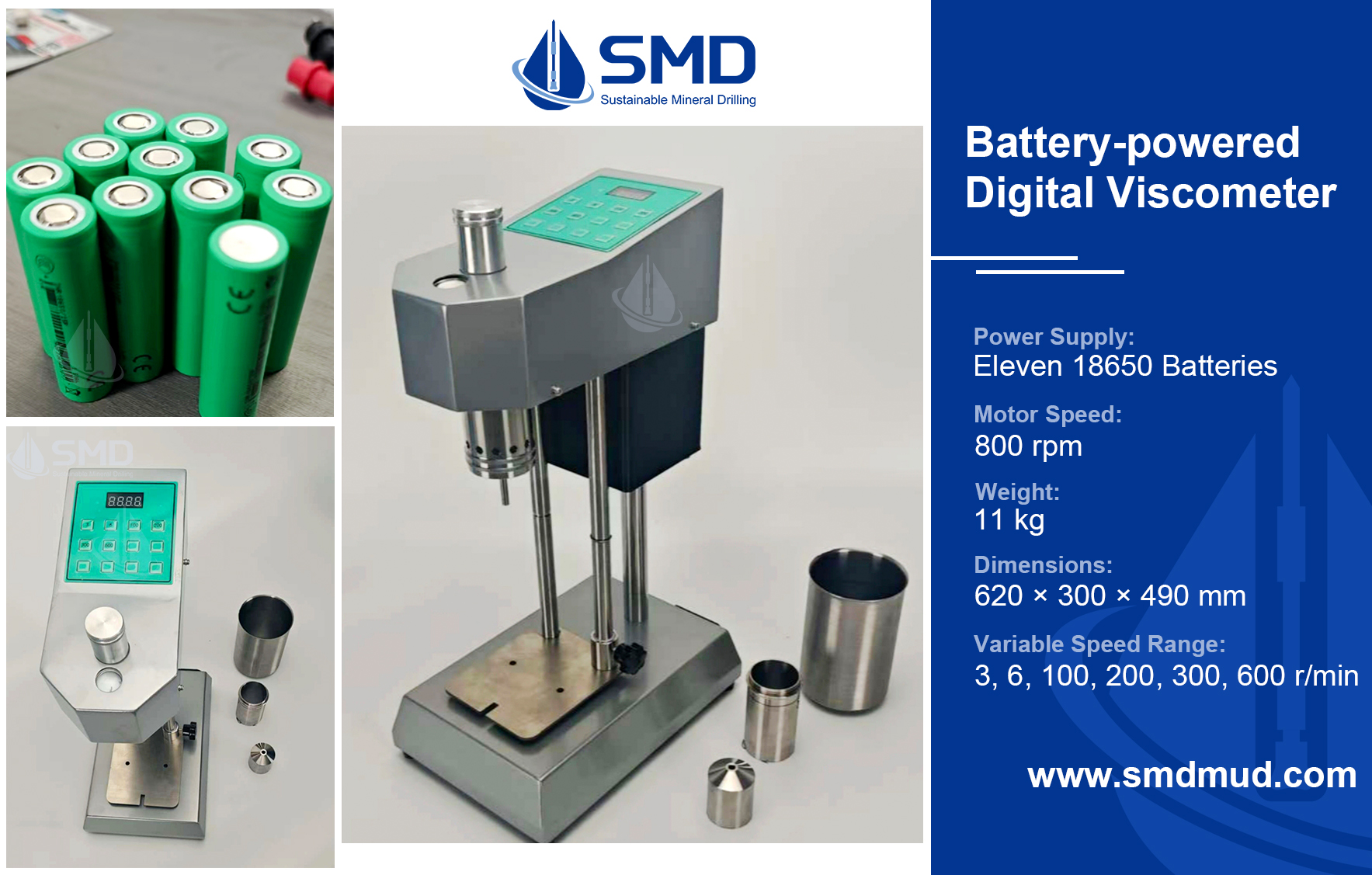

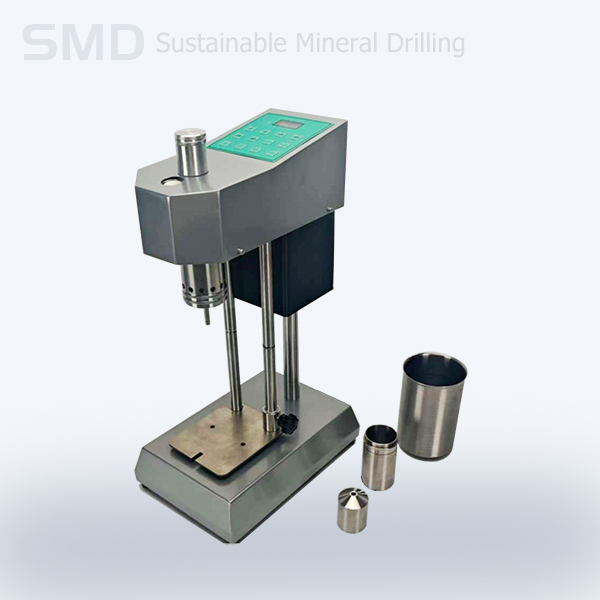

Digital Rheometer
During the measurement, the outer cylinder rotates at a preset speed, and the fluid generates viscous resistance. This resistance translates into a torque acting on the suspended rotor, which is connected to a precision spring. The spring’s torsion produces a deflection that can be measured, and by comparing it with the test conditions and the instrument’s constants, the fluid’s viscosity is determined.
Technical Specifications
- Power Supply: Eleven 18650 Batteries
- Motor Speed: 800 rpm
- Speed Range: 3, 6, 100, 200, 300, 600 rpm
Measurement Accuracy:
- 1–25 mPa·s: ±1 mPa·s (Newtonian fluids)
- Over 25 mPa·s: ±4% (Newtonian fluids)
Viscosity Measurement Range:
- Newtonian fluids: 1–300 mPa·s (Measurement Set F1)
- Non-Newtonian fluids: 1–150 mPa·s (Set F1), 1–30 mPa·s (Set F0.2)
Measurement Set: Set F1
Weight: 11 kg
Dimensions: 620 × 300 × 490 mm
